COMTEC® 6000 – In-Situ Combustion Analyzer for O₂ and COe Monitoring
When efficient combustion and low emissions are critical, reliable measurement of oxygen and combustion gases is essential. COMTEC® 6000 provides real-time monitoring of oxygen (O₂) and carbon monoxide equivalent (COe) directly inside the flue gas.
By measuring both parameters in situ, the analyzer gives you the data needed to optimize air-to-fuel ratios, reduce CO emissions, and maintain stable combustion across a wide range of industrial processes.
Want to know more about our solutions from ENOTEC?
Direct In-Situ Measurement for Accurate Combustion Monitoring
COMTEC® 6000 is an in-situ probe analyzer designed for installation directly in flue gas ducts, boilers, and furnaces. The system combines two proven sensor technologies:
- Zirconium oxide sensor for precise oxygen measurement
- Mixed potential (MXP) sensor for COe detection
This combination allows operators to monitor both excess oxygen and incomplete combustion in real time.
The probe is built for harsh industrial environments and can measure process gas temperatures up to 500 °C directly in the process, or up to 1400 °C when used with a cooling protection tube.

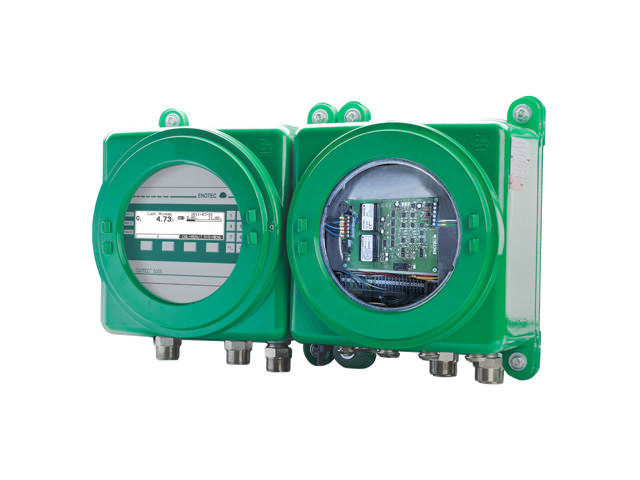

Hazardous Area Versions for Gas and Dust Environments
For installations in hazardous areas, COMTEC® analyzers are available in explosion-protected versions.
Available variants include:
- COMTEC GasEx – designed for explosive gas atmospheres with ATEX certification
- COMTEC DustEx – suitable for dust explosive environments
These versions enable safe operation in challenging industrial environments such as chemical plants, energy facilities, and heavy industry.
Key Features for Reliable Combustion Control
- Simultaneous O₂ and COe measurement in flue gas
- Zirconium oxide and mixed potential sensor technology
- Fast sensor response time (<1 second) for oxygen measurement
- Oxygen measurement ranges configurable from 0–2 vol.% to 0–25 vol.%
- COe measurement ranges up to 5000 ppm
- Suitable for high-temperature combustion processes
- Optional automatic calibration
- Standard 4–20 mA analog outputs for process integration
- Robust probe design for harsh industrial environments
These capabilities allow operators to continuously monitor combustion conditions and respond quickly to process changes.
Designed for Demanding Industrial Applications
COMTEC® 6000 is designed for combustion monitoring in a wide range of industries where precise process control is required.
Typical applications include:
- Waste incineration plants
- Biomass and industrial boilers
- Cement and lime kilns
- Power plants
- Steel and metal processing furnaces
- Industrial combustion systems
By measuring both oxygen and COe directly in the process gas, you gain better visibility into combustion performance and process stability.
Benefits for Your Combustion Process
With COMTEC® 6000 installed in your combustion system, you gain reliable measurement data that helps improve process performance.
Key advantages include:
- Optimized air-to-fuel ratios for improved energy efficiency
- Reduced CO emissions and improved environmental compliance
- Fast response times for real-time combustion control
- Reliable measurements in high-temperature environments
- Flexible installation options for standard and hazardous areas
These benefits help you maintain stable operation while reducing energy consumption and emissions.
