QED Environmental Systems
Fixed Biogas & Biomethane Analyzers – Continuous Monitoring for Stable Gas Production
In biogas and biomethane plants, gas composition directly affects process stability, efficiency and regulatory compliance.
Fixed analyzers from QED provide continuous monitoring of methane, carbon dioxide, oxygen and trace gases across your process. You gain reliable data for optimizing digestion, verifying gas upgrading and ensuring that injected biomethane meets grid specifications.
Through Norsk Analyse, these systems are configured to match your plant layout, monitoring points and communication infrastructure.
Want to know more about our solutions from QED?
Continuous Gas Monitoring Across Your Biogas Process

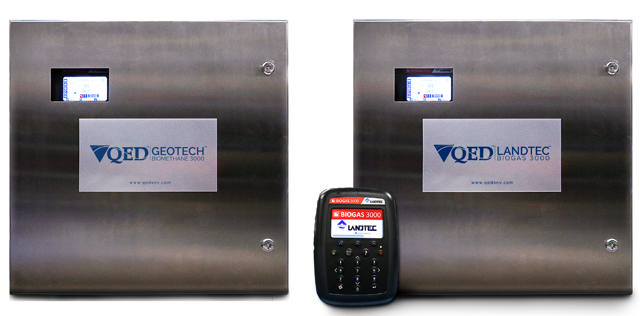

The BIOGAS 3000 and BIOMETHANE 3000 analyzers are designed for fixed installation in anaerobic digestion and upgrading facilities.
Using infrared measurement for methane and carbon dioxide combined with electrochemical sensors for oxygen and trace gases, the analyzers deliver stable and repeatable readings for continuous process control.
Depending on the configuration, the system can monitor multiple sampling points and integrate directly with plant control systems via industrial communication protocols.
This enables operators to track gas quality at critical process stages – from digester output to upgrading and grid injection.
Two Analyzer Platforms for Different Stages of the Biogas Process
The QED platform includes two closely related analyzers designed for different parts of the biogas value chain.

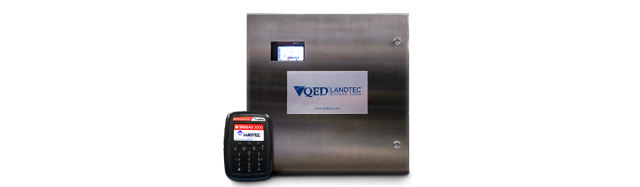

BIOGAS 3000 – Continuous Monitoring for Anaerobic Digestion
The BIOGAS 3000 is designed for continuous monitoring within anaerobic digestion plants and landfill gas systems.
It measures methane, carbon dioxide and oxygen, with optional sensors for hydrogen sulphide, hydrogen and carbon monoxide. With support for up to four sampling points, operators can monitor gas composition across multiple stages of the digestion process.
The analyzer supports stable process monitoring and early detection of oxygen ingress or gas quality changes.

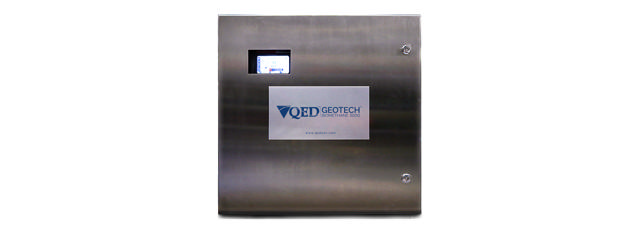

BIOMETHANE 3000 – Gas Quality Verification for Grid Injection
The BIOMETHANE 3000 is optimized for biomethane upgrading facilities where gas quality must meet strict grid specifications.
It delivers high-accuracy methane and oxygen measurement to verify methane levels above 95% and oxygen levels below 1%. Automated calibration functions help maintain measurement accuracy even under variable operating conditions.
This makes the system well suited for final-stage gas verification before grid injection.
Key Capabilities for Biogas and Biomethane Plants
- Continuous monitoring of CH₄, CO₂ and O₂
- Optional measurement of H₂S, H₂ and CO
- Multi-point sampling for plant-wide monitoring
- High-accuracy methane measurement for upgrading applications
- Industrial communication via Modbus RTU
- Optional Profibus and Profinet integration
- Integrated alarms and process notifications
- Stainless steel IP65 enclosure for industrial environments
- ATEX / IECEx certification for hazardous areas
Typical Applications in Energy and Waste Treatment
Fixed biogas analyzers support process monitoring in several energy and environmental sectors:
- Agricultural and industrial anaerobic digestion plants
- Food waste and organic waste digestion
- Sewage sludge digestion in wastewater treatment
- Biomethane upgrading facilities
- Grid injection monitoring and verification
These installations require continuous gas data to maintain stable operation and ensure regulatory compliance.
Benefits for Your Operation
With fixed biogas analyzers from QED, you gain:
- Reliable methane data for optimizing gas production
- Early detection of oxygen ingress or process instability
- Verification of gas quality before upgrading or injection
- Continuous documentation for regulatory reporting
- Reduced downtime through modular serviceability
- Stable measurement performance in industrial environments
The result is better process control and reduced operational risk.
